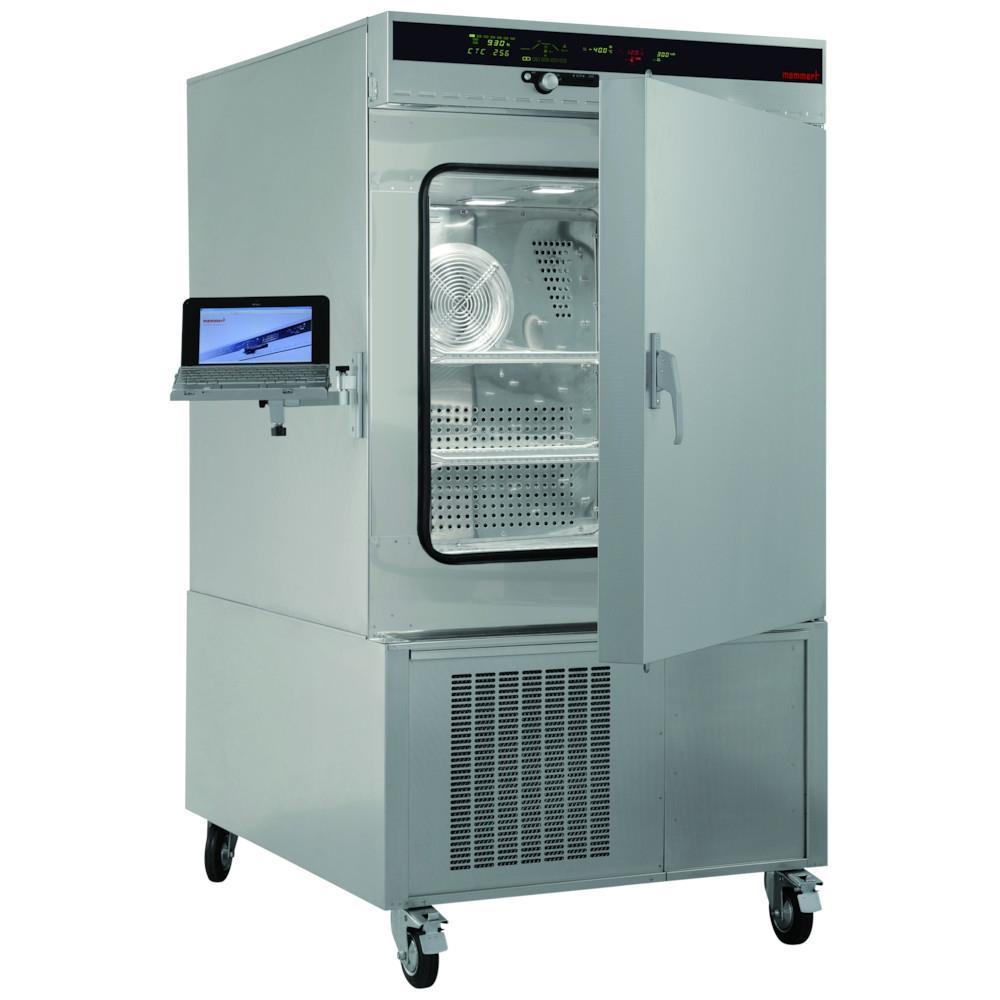

Rapid, precise and energy-saving temperature changes in the range from -42 to +190°C, along with fast humidity recovery times, make the TTC temperature test chamber and the CTC climatic test chamber with humidity unit a perfect duo.

State-of-the-art control technology
Extremely powerful due to the optimally coordinated heating and cooling technology
Specifically suited for tests in accordance with IEC 60068
High-tech insulation system for permanent insulation capacity and energy efficiency
Temperature change rate in heating operation according to IEC 60068-3-5: 10K/min (-40 to +180°C; measured at an ambient temperature of 22°C)
Temperature change rate in cooling operation according to IEC 60068-3-5: 3K/min (from +180 to -40°C; measured at an ambient temperature of 22°C)
Refrigerant R449A, significantly more climate-friendly than R404A

CTC only:

Electronically controlled active humidification and dehumidification from 10 to 98% rh
Telescopic slide for 2 x 10L tanks for distilled water as fresh water and 2 x 10L as condensate collector
Automatic water tank changer-over with alarm for continuous operation
Works calibration certificate at -20°C and +160°C and at +30°C and 60% rh
