what is the carbon Sulphur analyzer used for

Name: Carbon & Sulphur Analyser
Brand: biobase
SKU: YX-108-A134
Price: 11000000 TZS
Availability: InStock

Carbon & Sulphur Analyser

Home Products Analytical Equipment Carbon & Sulphur Analyser

biobase

Carbon & Sulphur Analyser

(0 reviews)

Adopting the double CPU design, electronic circuit integration degree is highly, steady and reliable, which can settle the high-frequency interference thoroughly.
The special new platinum infrared light source, Gold plated carbon sulfur analysis pool and high precision pyroelectric infrared detector to make the apparatus’ measurement more accurate.
Adopting the high power and quick frequency circuit design, which using 6KVA high frequency power tube(actual use of power is about 2.5KVA, it can turn on to work itself), to reduce the high frequency combustion system load and to increase the using time.
Furnace head automatic cleaning device, patent technology supply system and -0.4mm amd hole metal filter to make the dust and gas seperated, reducing the dust on the result of analysis.

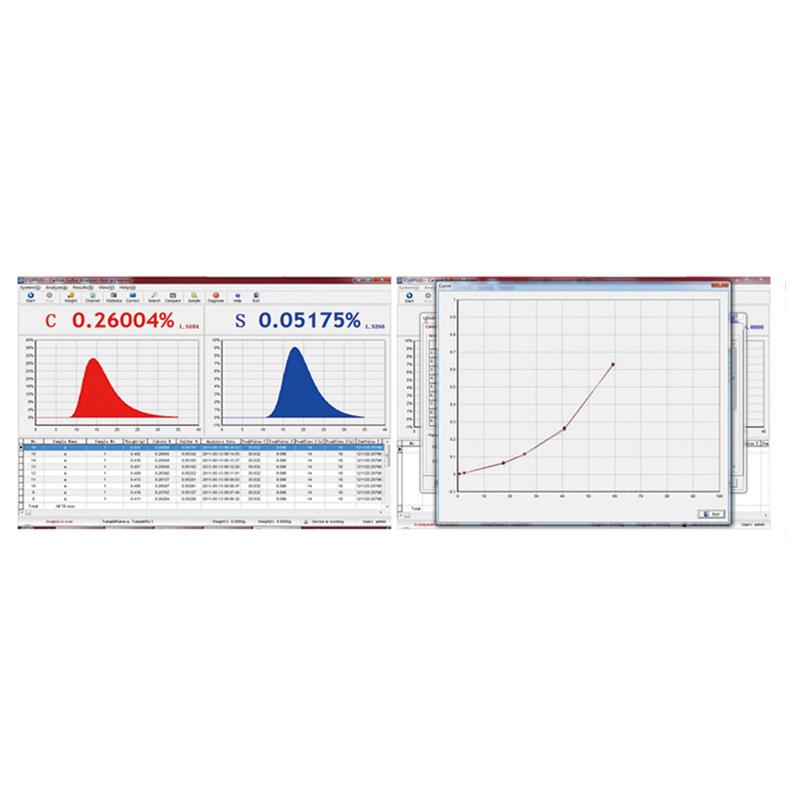

Specialized analysis software of many different language owns following functions: curve/data storage, blank deduction, parameter determination, channel choosing, data statistics, results correction, breakpoint correction, curve comparison, system diagnosis, automatic/manual printing analysis results etc.

Application Fields

Infrared Carbon & Sulfur Analyzer, with infrared analysis techniques and arc burner, Testing the mass fraction of C, S of steel, iron, alloy, mold and cores, nonferrous metal, cement, ore, coke, catalyst, magnetic materials, ceramic, inorganic substance, black lead, refractory matter, battery matter, plant and other materials

TZS11,000,000.00 TZS11,500,000.00

Available

Quantity

SKU: YX-108-A134

Category: Analytical Equipment

30 days easy returns
Order yours before 2.30pm for same day dispatch

Guaranteed safe & secure checkout

Bought Together

Sale

laboratory stackable incubator shaker

TZS9,900,000.00

MODEL BK-CSAS6

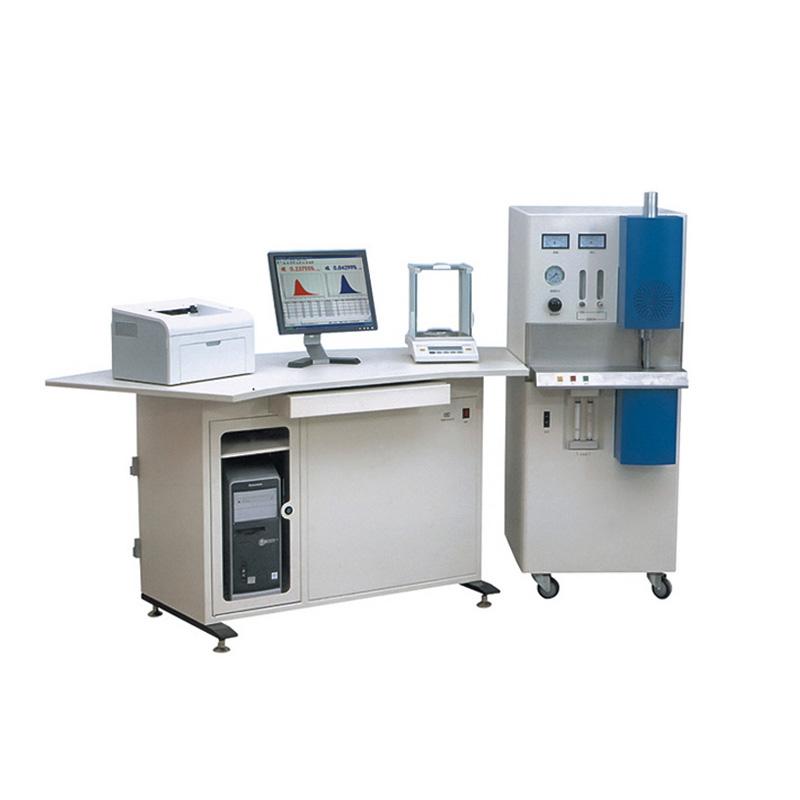

High-frequency Infrared Carbon & Sulfur Analyser can determine the percentage of carbon and sulfur in steel, iron, alloy, nonferrous metal, cement, mineral, glass and other material.

TECHNICAL PARAMETERS

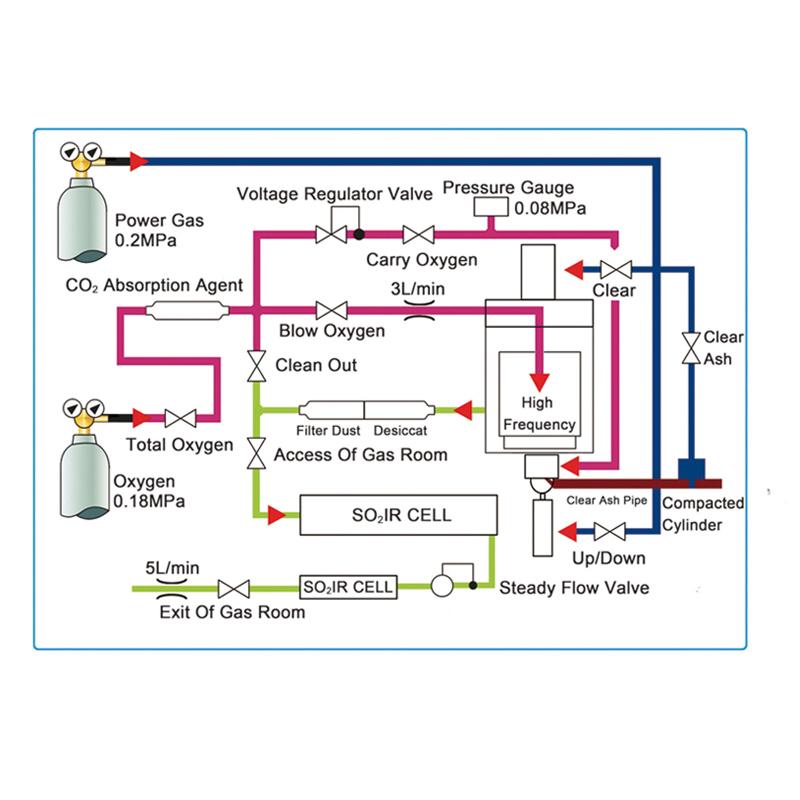

Working Principle	High-frequency inductive combustion and infrared absorption system
Sample Weight (Solid steel)	Standard 0.5g
Accuracy	C/S: 0.1 ppm
Analysis Time	25-60s adjustable (normally: 35s)
Working Cycle	24 hours

Appearance	Separate work station, with vertical high-frequency furnace
Analysis Range	C: 0.0001 %-10.0000% (can be extended to 99.999%) S: 0.0001 %-3.50000% (can be extended to 99.999%)
Analysis Pool	2 pools (optional 4 pools)
Consumption	2.5KW
Power Supply	AC220V±10%, 50/60HZ
Package Size(WDH)	1670750960mm, 7505801430mm
Gross Weight	150kg, 180kg
Standard Accessories	Main unit, high frequency automatic inductive combustion furnace, electric balance
	1000 times effective analysis of spare parts

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Your rating:

Review:

Upload photos

You can upload up to 6 photos, each photo maximum size is 2048 kilobytes.

Looks like there are no reviews yet.

this can be used for Metallurgy, Steel production for cement and construction materials and petrochemical and energy sector.
