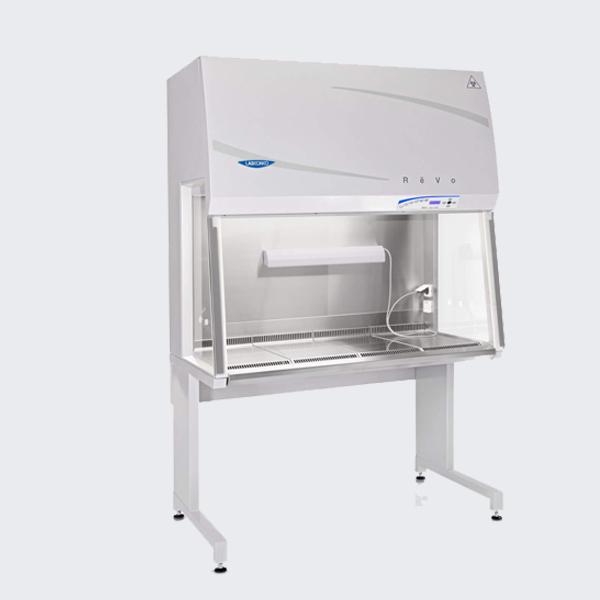

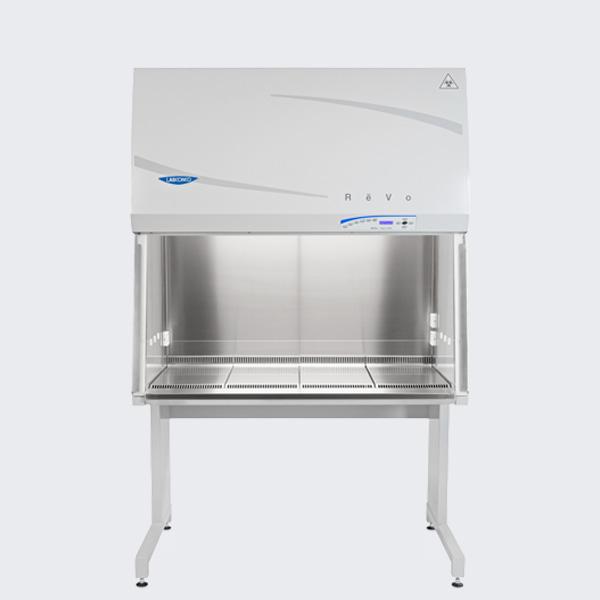

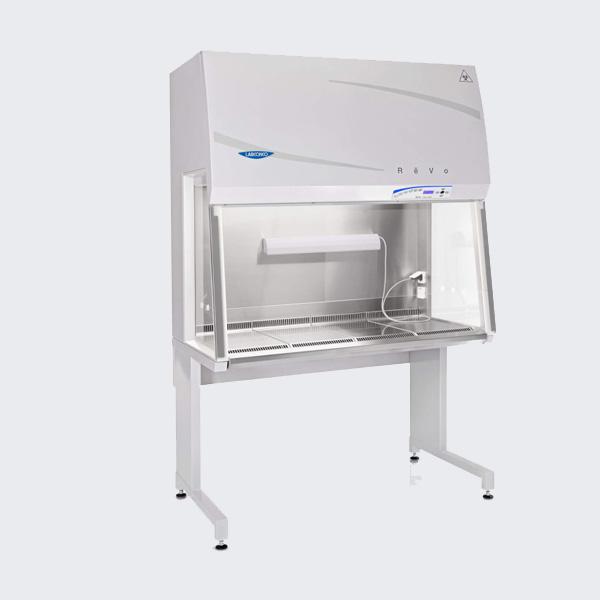

Model BSC-1100 IIA2-X
External Size (W°D"H) 1100*755‘2200mm
Internal Size (W”D°H) 940”60D*660mm
Tested Opening Safety height 200mm (8")
Max Opening 450mm
Inflow Velocity 0.53 to 0.25m/s
Downftow Velocity 0.33 to.025m/s
ULPA Filter Two, 99.9995°4 efficiency at0.12pm, filter life indicator
Front Window Motorized. Two-layer laminated toughened glass26mm. Anti UV Noise 865dB
UV Lamp 30W*1
Display LCD display: exhaust filter and down flow filter pressure, filter and UV lamp working time, inflow and down flow velocity, filter life, humidity and temperature, system working time etc.
-Control System Airflow System Microprocessor
-Material Work Zone: 304 stainless steel
-Main Body: Cold-rolled steel with anti-bacteria powder coating
Standard Accessory LEO lamp 2pcs, UV lamp 2pcs, Base stand, Remote control, Foot switch, Drain valve, Waterproof
1. Color key display: large screen, more clear and dynamic display of various values of the safety cabinet, and has the function of appointment timing
2. Automatically adjust the wind speed
3With power-off memory function, the state before power-off will be be restored after power-on, and there will be visual prompts and alarms.
4. The integrated design of the operation area makes it easy to disassemble and clean
5 The cabinet is separated from the base
6. Interlocking function: UV lamp and front window; UV lamp and fan, LED lamp; fan and front window
7. It has the function of appointment timing, which can automatically set the time of starting and shutting down the safety cabinet and the running time of ultraviolet lamps, fans and sockets.
8. The front window closes the double trigger signal, so that the sterilization and disinfection function The front window closes the double trigger signal, so that the sterilization and disinfection function turned on
9. The negative pressure air duct is equipped with a foreign matter filtering structure matter such as paper scraps from entering the fan system and affecting the normal operation of the product.
