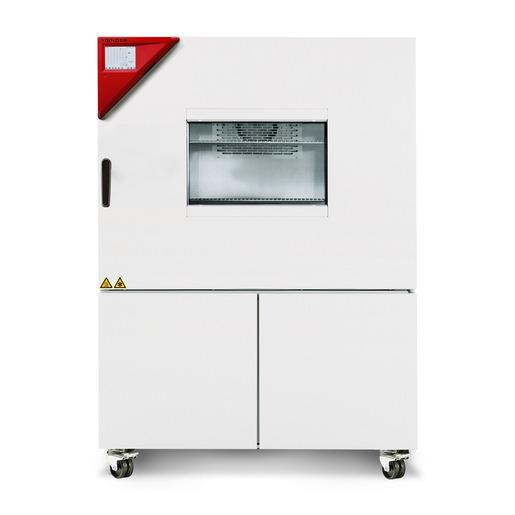

A BINDER MKF series environmental simulation chamber is ideally suited for any cold and heat testing based on current temperature and climate testing methods according to DIN and IEC standards. The comprehensive standard equipment for this environmental simulation chamber ensures ease of operation.

Homogeneous climate conditions thanks to APT.line™ technology
Automatic water and wastewater management
Pressure humidification with fast response times
Comprehensive programming and data acquisition
Large heated viewing window
Temperature range: -40°C to +180°C

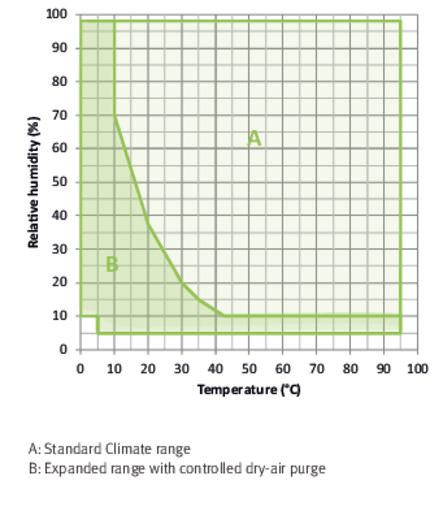

Humidity range: 10% to 98% RH
4 zero-voltage relay contacts that can be activated via MCS controller
APT.line™ preheating chamber technology
Programmable condensation protection for test material
Heated viewing window with LED interior lighting
Humidity regulation with capacitative humidity sensor and vapour humidification
BINDER Multi Management Software APT-COM™ Basic Edition
Troubleshooting system with visual and audible alarms
Intuitive touchscreen controller with time-segment and real-time programming
Internal data logger, measured values can be read out in open format via USB
Unit self-test for comprehensive status analysis
Access port with silicone plug: 50 mm, left
4 castors, two with brakes
Computer interface: Ethernet
Adjustable ramp function
Integrated chart recorder
Real-time clock
Door heating
1 stainless steel rack
Complete safety connection kit for water supply and drainage, up to 1m height
BINDER test confirmation
Inner chamber made of stainless steel
Pt 100 temperature sensor
Thermal insulation using PUR foam
CFC-free refrigerant R-452A
Cooling with compressor cooling unit
Fin evaporator
